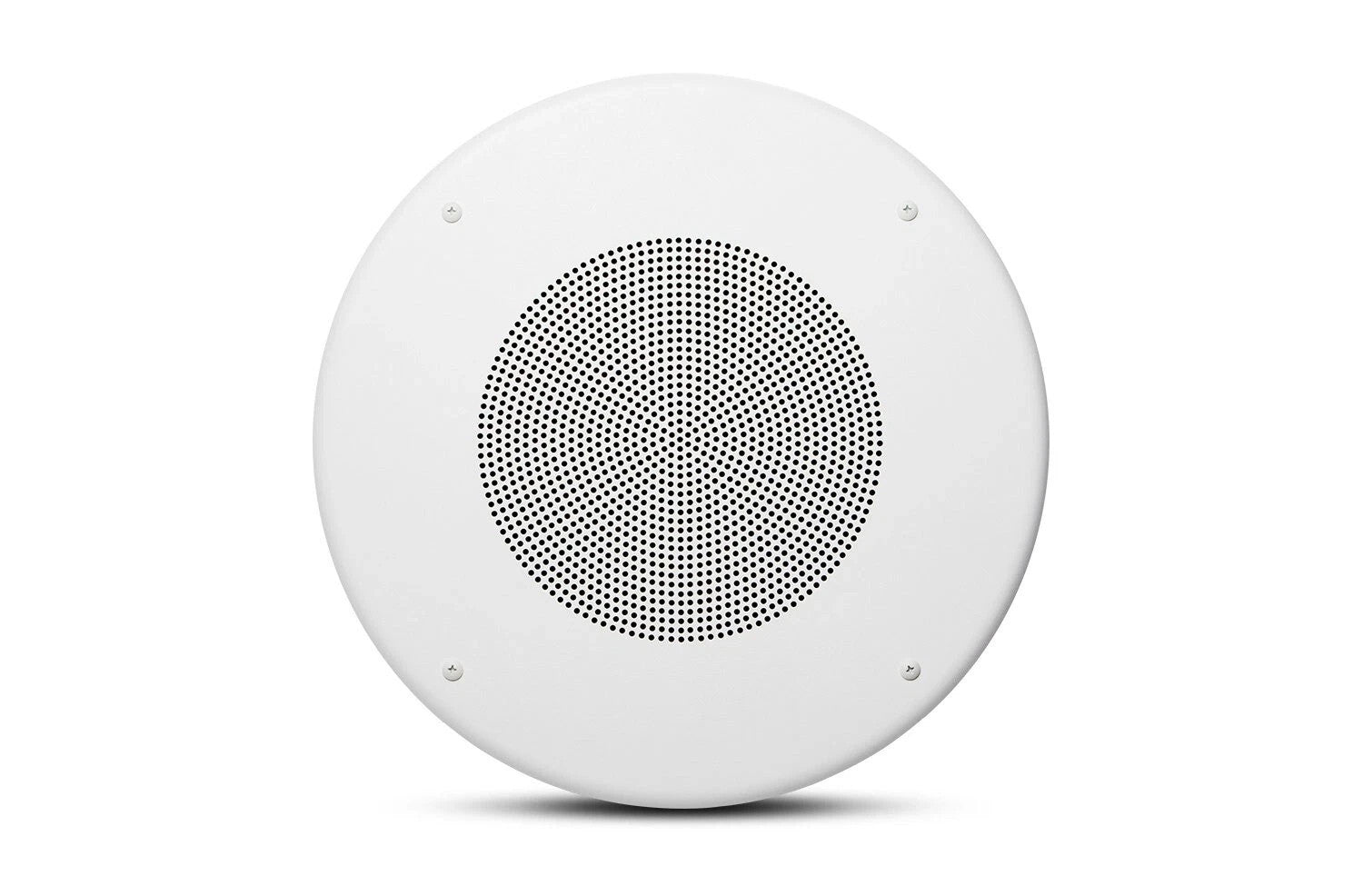

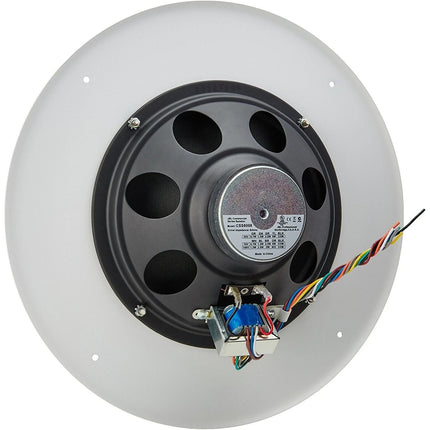

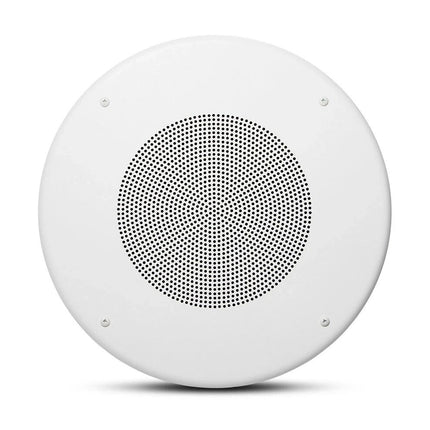

JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White

Description

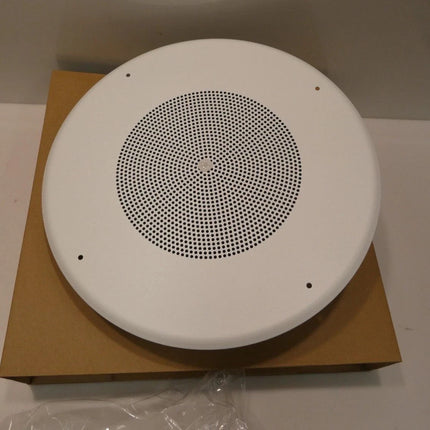

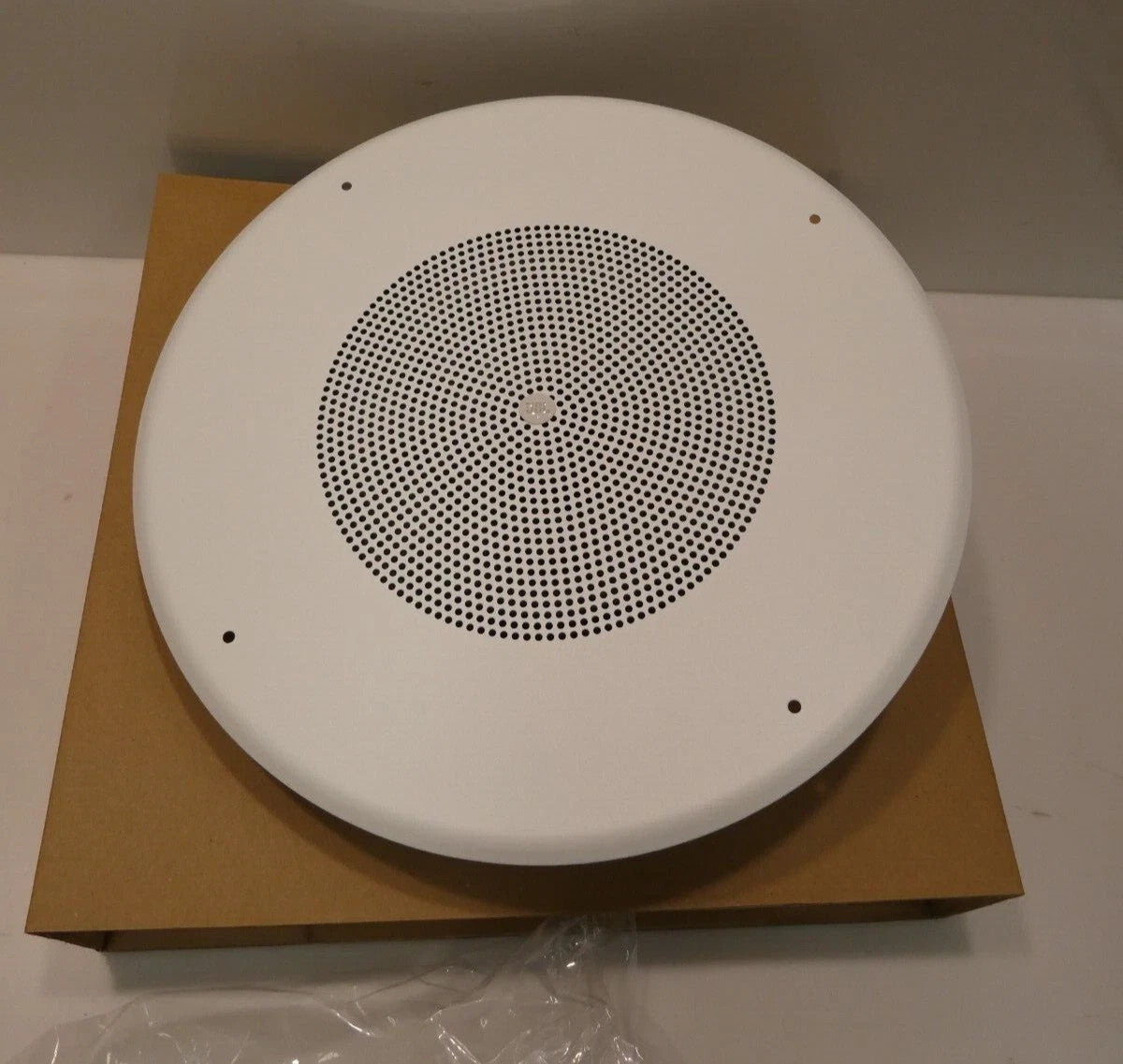

You are buying JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White, Its new never used. Box opened and checked.


INT REF: A9794


Features

  • High 96 dB sensitivity

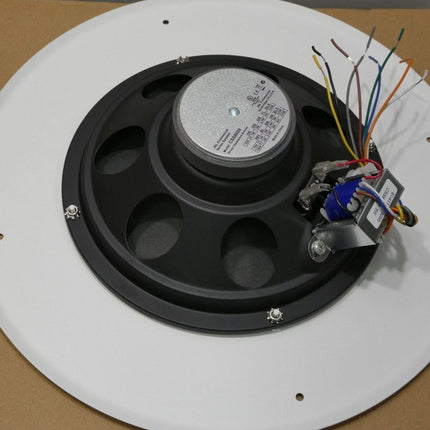

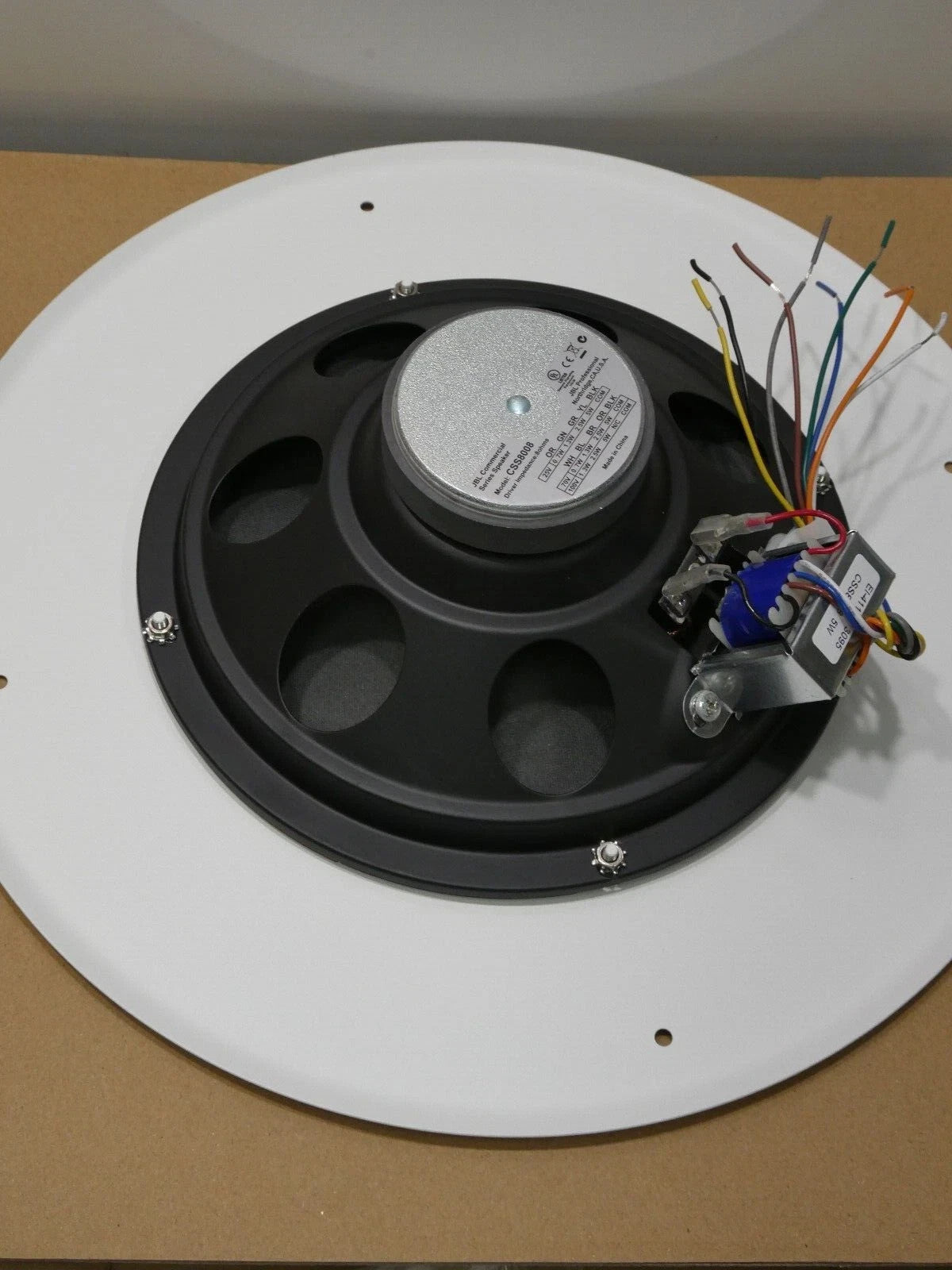

  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • 120° conical coverage
  • Fits CSS-BB8 backcan

Specifications

  • Drivers 200 mm (8 in) Full-Range
  • Sensitivity 96 dB (2k – 6k Hz)
  • Frequency Range (-10 dB) Driver/Grille Assembly 55 Hz – 16 kHz
  • Installed in CSS-BB backcan 100 Hz – 16 kHz
  • Coverage Angle 120° conical
  • Driver Continuous Power Handling 15 Watts
  • Transformer Taps 5W, 2.5W, 1.3W
  • Transformer Taps 5W, 2.5W, 1.3W, 0.7W
  • Transformer Taps 5W, 2.5W, 1.3W, 0.7W
  • Transformer Insertion Loss 1.5 dB Maximum
  • Transformer Connection Bare wire
  • Motor Mass 200 g (7 oz)
  • Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Matching CSS Backcan CSS-BB8 (0.15 cu ft)
  • Other Compatible Backcans MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft)
  • Bolt Mounting Circle to Backcan 4 points on 286 mm(11.25 in) diameter
  • Cutout DiameterOpen-back 216 mm (8.5 in)
  • In CSS-BB backcan 295 mm (11.7in)
  • Depth (behind grille) 71 mm (2.8 in)
  • Grille Diameter 327 mm (12.9 in)
  • Net Weight (each) 1.27 kg (2.8 lb)
  • Shipping Weight (ea) 1.94 kg (4.3 lb)
  • Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
  • Power Rating See transformer taps
  • Transformer Taps 100V Taps – 5W, 2.5W, 1.3W
  • 70V Taps – 5W, 2.5W, 1.3W, 0.7W
  • 25V Taps – 5W, 2.5W, 1.3W, 0.7W
  • Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
  • Input Connectors Bare wire
  • Color White
  • Backcan formed steel (accessory)
  • Baffle/Rim Metal
  • Ceiling Cutout Size 216 mm (8.5 in)
  • Plenum Usage Yes, with accessory backcan

JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White

Product form

You are buying JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White, Its new never used. Box opened and checked.INT... Read more

SKU: EB-257244673849

4 in stock

$49.99 Incl. GST

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Shipped today? Order within: Jan 02, 2026 17:00:00 +1100

    Description

    You are buying JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White, Its new never used. Box opened and checked.


    INT REF: A9794


    Features

    • High 96 dB sensitivity
    • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
    • 120° conical coverage
    • Fits CSS-BB8 backcan

    Specifications

    • Drivers 200 mm (8 in) Full-Range
    • Sensitivity 96 dB (2k – 6k Hz)
    • Frequency Range (-10 dB) Driver/Grille Assembly 55 Hz – 16 kHz
    • Installed in CSS-BB backcan 100 Hz – 16 kHz
    • Coverage Angle 120° conical
    • Driver Continuous Power Handling 15 Watts
    • Transformer Taps 5W, 2.5W, 1.3W
    • Transformer Taps 5W, 2.5W, 1.3W, 0.7W
    • Transformer Taps 5W, 2.5W, 1.3W, 0.7W
    • Transformer Insertion Loss 1.5 dB Maximum
    • Transformer Connection Bare wire
    • Motor Mass 200 g (7 oz)
    • Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
    • Matching CSS Backcan CSS-BB8 (0.15 cu ft)
    • Other Compatible Backcans MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft)
    • Bolt Mounting Circle to Backcan 4 points on 286 mm(11.25 in) diameter
    • Cutout DiameterOpen-back 216 mm (8.5 in)
    • In CSS-BB backcan 295 mm (11.7in)
    • Depth (behind grille) 71 mm (2.8 in)
    • Grille Diameter 327 mm (12.9 in)
    • Net Weight (each) 1.27 kg (2.8 lb)
    • Shipping Weight (ea) 1.94 kg (4.3 lb)
    • Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
    • Power Rating See transformer taps
    • Transformer Taps 100V Taps – 5W, 2.5W, 1.3W
    • 70V Taps – 5W, 2.5W, 1.3W, 0.7W
    • 25V Taps – 5W, 2.5W, 1.3W, 0.7W
    • Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
    • Input Connectors Bare wire
    • Color White
    • Backcan formed steel (accessory)
    • Baffle/Rim Metal
    • Ceiling Cutout Size 216 mm (8.5 in)
    • Plenum Usage Yes, with accessory backcan
