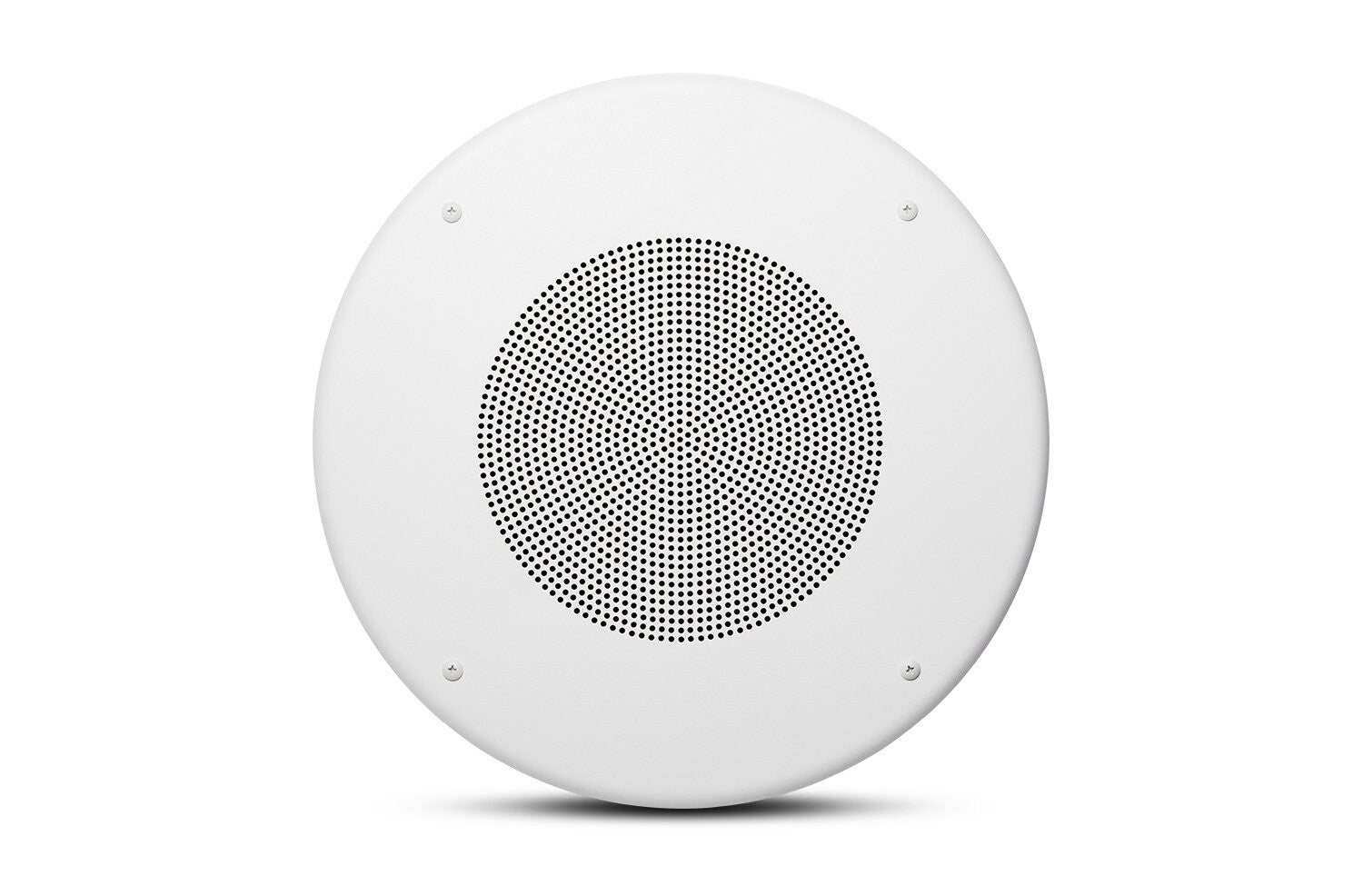

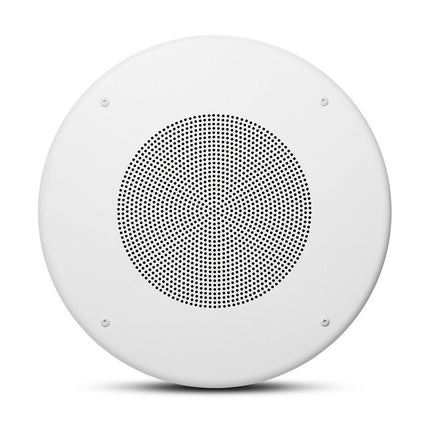

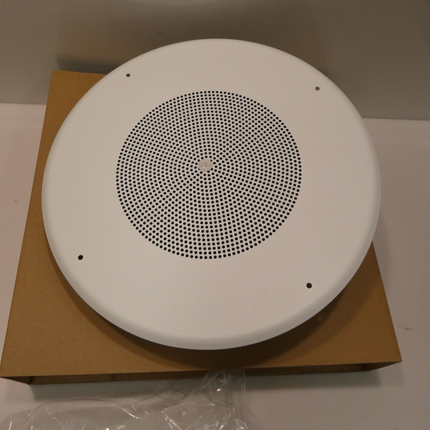

JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White

Description

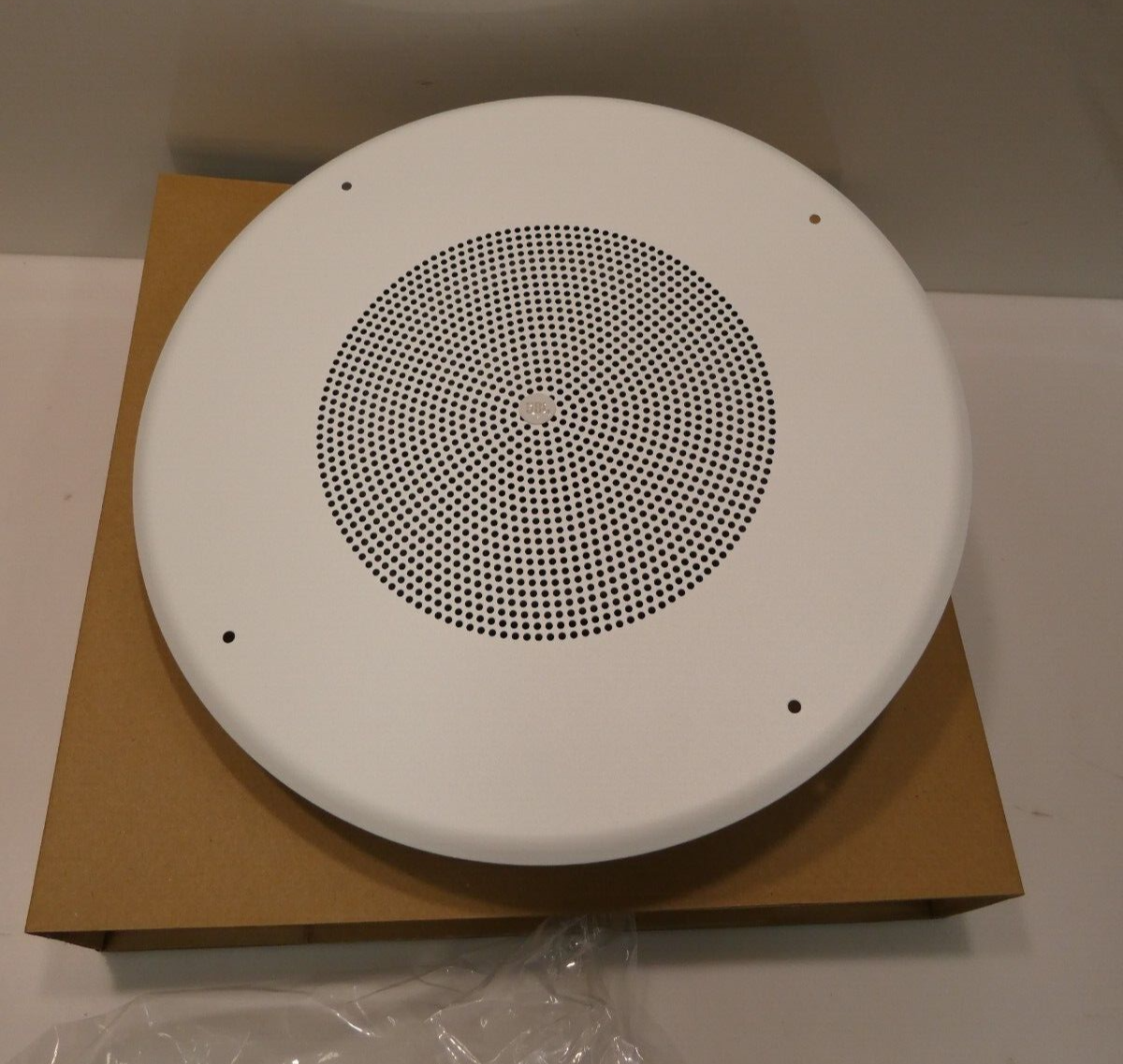

You are buying JBL CSS8008 Commercial Series 15-Watt 8" Ceiling Speaker - White, Its new never used. Box opened and checked.


INT REF: A9794


Features

  • High 96 dB sensitivity

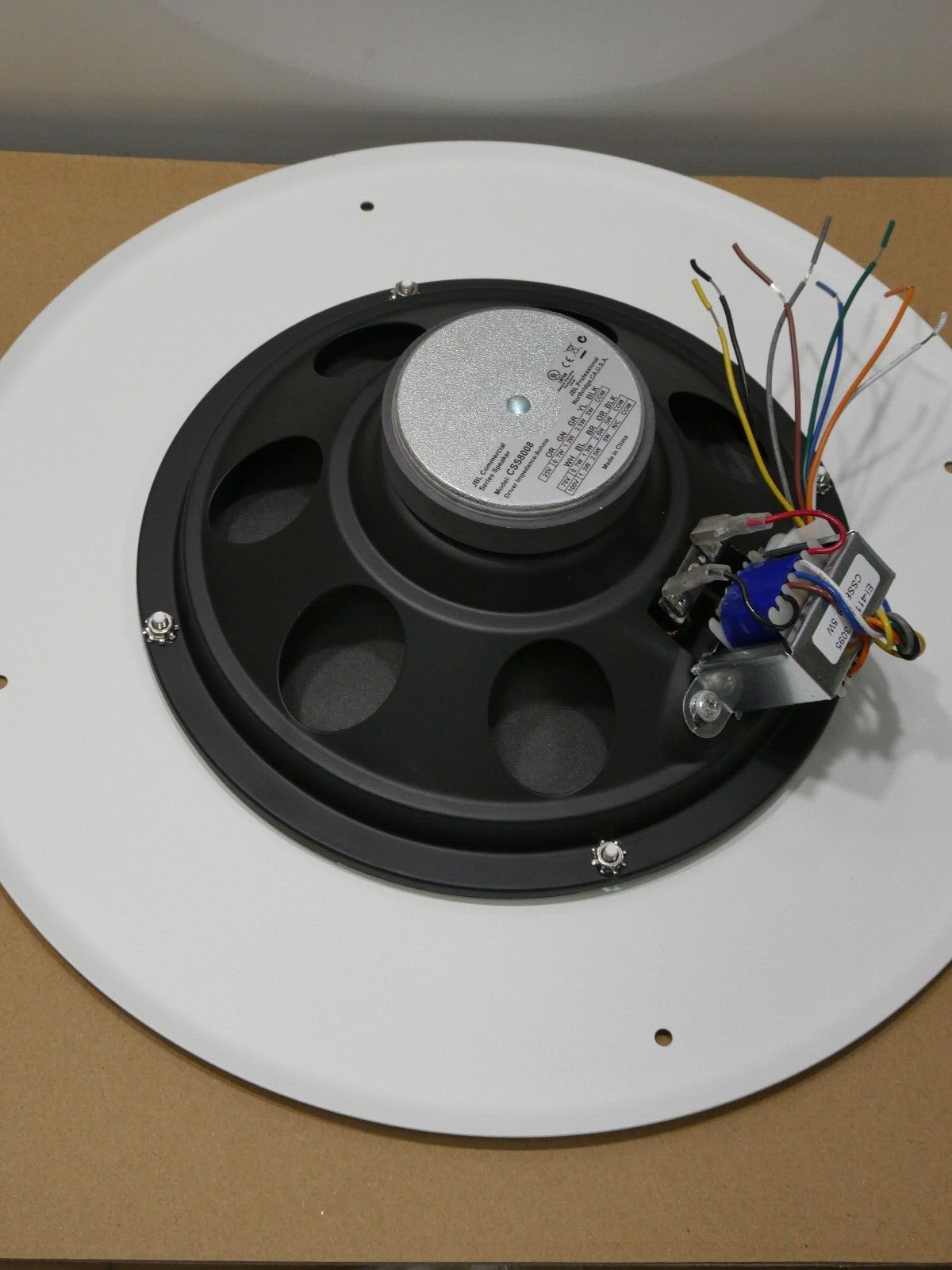

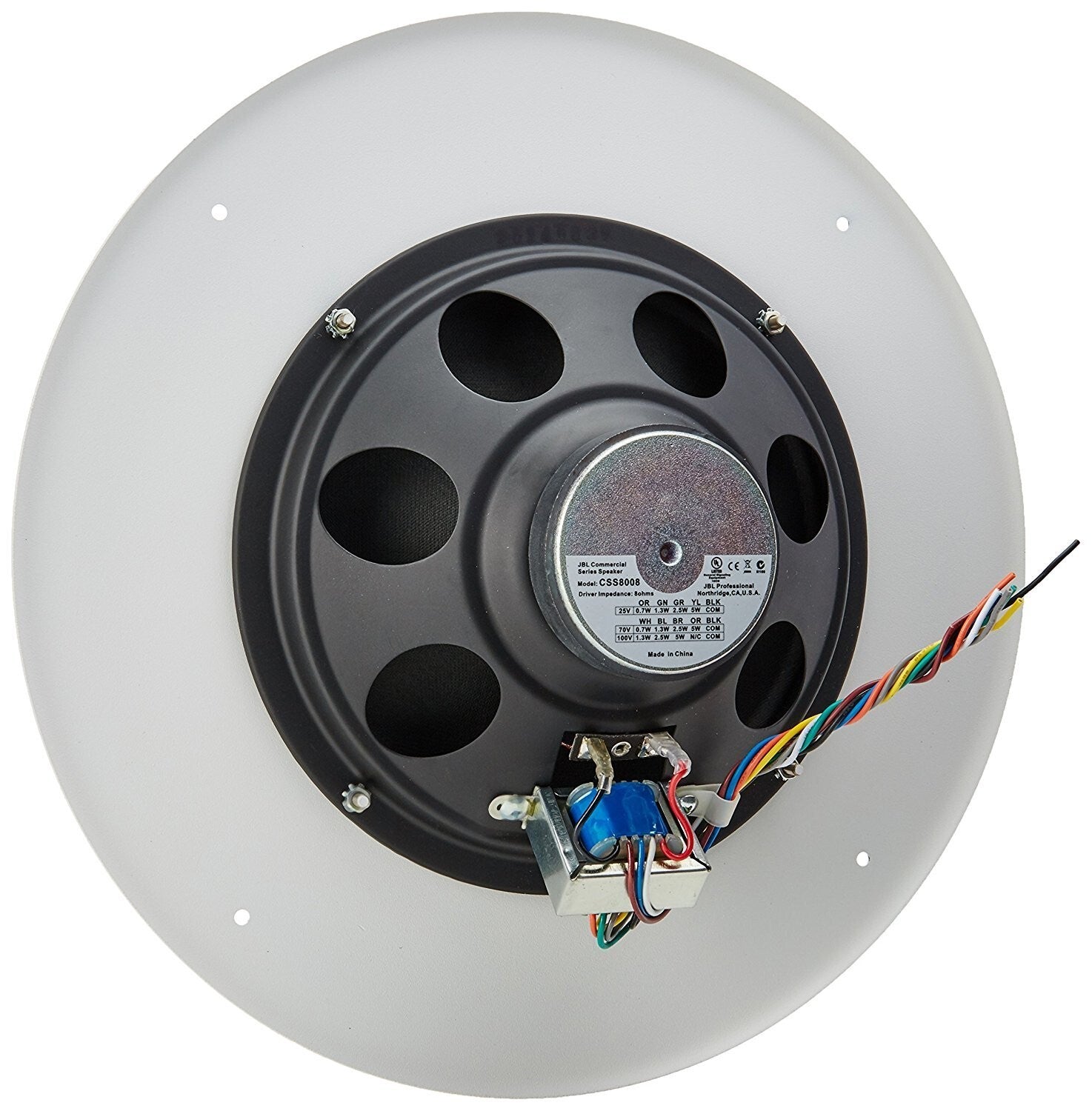

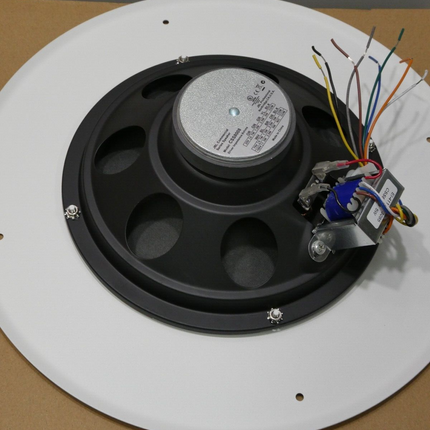

  • 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
  • 120° conical coverage
  • Fits CSS-BB8 backcan

Specifications

  • Drivers 200 mm (8 in) Full-Range
  • Sensitivity 96 dB (2k – 6k Hz)
  • Frequency Range (-10 dB) Driver/Grille Assembly 55 Hz – 16 kHz
  • Installed in CSS-BB backcan 100 Hz – 16 kHz
  • Coverage Angle 120° conical
  • Driver Continuous Power Handling 15 Watts
  • Transformer Taps 5W, 2.5W, 1.3W
  • Transformer Taps 5W, 2.5W, 1.3W, 0.7W
  • Transformer Taps 5W, 2.5W, 1.3W, 0.7W
  • Transformer Insertion Loss 1.5 dB Maximum
  • Transformer Connection Bare wire
  • Motor Mass 200 g (7 oz)
  • Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
  • Matching CSS Backcan CSS-BB8 (0.15 cu ft)
  • Other Compatible Backcans MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft)
  • Bolt Mounting Circle to Backcan 4 points on 286 mm(11.25 in) diameter
  • Cutout DiameterOpen-back 216 mm (8.5 in)
  • In CSS-BB backcan 295 mm (11.7in)
  • Depth (behind grille) 71 mm (2.8 in)
  • Grille Diameter 327 mm (12.9 in)
  • Net Weight (each) 1.27 kg (2.8 lb)
  • Shipping Weight (ea) 1.94 kg (4.3 lb)
  • Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
  • Power Rating See transformer taps
  • Transformer Taps 100V Taps – 5W, 2.5W, 1.3W
  • 70V Taps – 5W, 2.5W, 1.3W, 0.7W
  • 25V Taps – 5W, 2.5W, 1.3W, 0.7W
  • Maximum SPL (1m) 103 dB (top 25V/70V/100V tap)
  • Input Connectors Bare wire
  • Color White
  • Backcan formed steel (accessory)

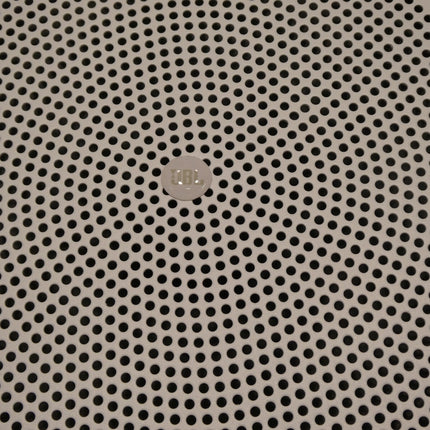

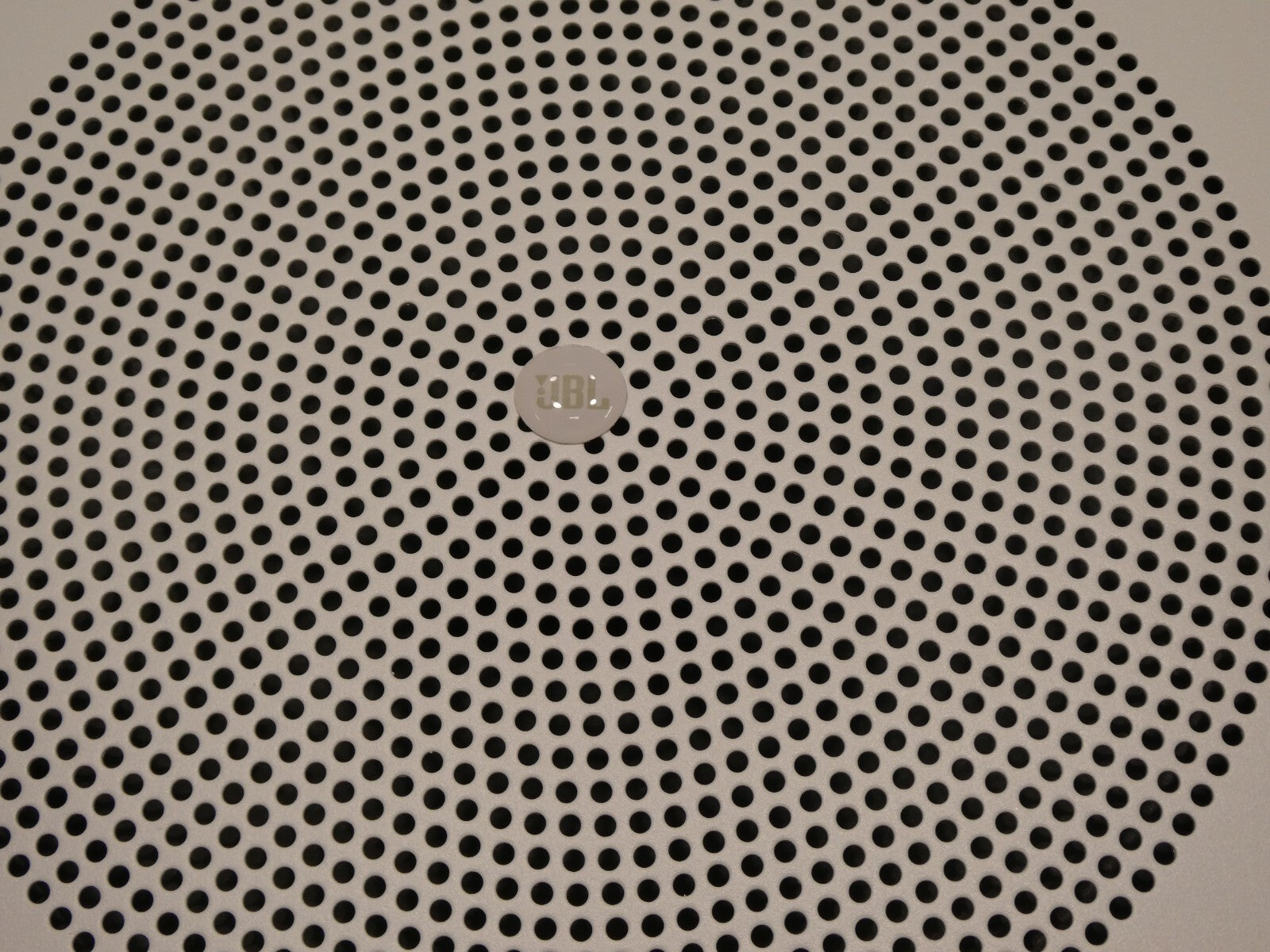

  • Baffle/Rim Metal
  • Ceiling Cutout Size 216 mm (8.5 in)
  • Plenum Usage Yes, with accessory backcan
